Parametric Architecture: Leveraging AI and Visual Programming

Parametric Architecture: Leveraging AI and Visual Programming

Parametric architecture is a design process for buildings using algorithms that create and manipulate building elements. The designer sets variables and rules producing forms that are complex and adaptive. In traditional designing, each element is crafted. The method uses computational power to test several possibilities for achieving innovative structures.

Presently, AI and visual programming are at the core of architecture. In this regard, it is able to recognize patterns, predict results, and optimize designs. On the other hand, ChatGPT offers architects the capability for working out concepts, planning optimization, and structuring solutions. As in the case of visual programming, it enables designers to express themselves with graphical elements instead of text-based code. This is achieved through software like Grasshopper for Rhino and Dynamo for Revit, making available to the user the manipulation of parameters through views. The fusion of artificial intelligence with visual programming would enable architects to automate and optimize workflows in the pursuit of more creative and sustainable designs.

In this blog, we will try to clarify the very basics of what is meant by this term: parametric design. Then, we look at key software and AI tools and consider iconic projects. We will try to show—through case studies and expert insight—how AI and visual programming are transforming architectural design

Visual Programming in Parametric Design

It is a methodology wherein designers can create programs with the help of graphical elements and not on the basis of any form of text code. Hence, in such a way, programming becomes much easier for people who do not have any sort of background in coding. This enables designers in the architectural industry to play around with parameters and algorithms through an interactive interface. In such a way, it becomes easy to build complex forms and structures.

Overview of Popular Softwares for Visual Programming in Parametric Design

  1. Grasshopper for Rhino: Grasshopper is a visual programming language plug-in to Rhinoceros 3D that helps architects in the creation of parametric designs by connecting components within a window through visuals and manipulating parameters. Grasshopper’s friendly user interface and large plugin ecosystems ease the process of iterative design exploration and integrations with other design tools, which provides flexibility in architectural modeling and analysis.
  2. Dynamo for Revit: Dynamo is a visual programming extension for Autodesk Revit, specializing in parametric design and automation. Architects use Dynamo to create custom scripts and algorithms that automate repetitive tasks, optimize workflows, and generate complex geometries within the Revit environment. Dynamo’s integration with Revit supports collaborative BIM processes, improving coordination between architects, engineers, and contractors.
  3. Rhino.Inside.Revit:Rhino.Inside.Revit is a Grasshopper component bridging Rhinoceros 3D and Autodesk Revit. It allows architects to run Rhino and Grasshopper inside the Revit environment. It combines parametric modeling and algorithmic design with geometric analysis but uses Revit’s BIM for Documentation and Project Management. This component allows for increased design flexibility, easier interoperability, and a smoother flow of data between programs for architectural workflows.
  4. ArchiCAD: ArchiCAD is capable of supporting parametric design through its own programming language called GDL, standing for Geometric Description Language. Because of GDL and the support of parametric objects in this environment, architects are able to make custom-made parametric elements, automate design variations, and optimize building elements. Its native approach to algorithmic design supports iterative design processes and makes architectural modeling and documentation easier
  5. CATIA: Generative Shape Design is endorsed with advanced parametric modeling tools at its core to help create complex shapes and surfaces across industries like architecture. In this context, CATIA is used to define design intent through parametric constraints, discover many design iterations, and optimize geometries for manufacturing and assembly processes in architectures. Robust parametric capabilities in CATIA support collaborative design workflows and seamless integration with CAD/CAM systems.

The Role of Artificial Intelligence in Parametric Architecture

One of the important driving factors behind parametric architecture is artificial intelligence. Such AI-driven tools help in automating and streamlining the design process by running complex calculations in coming up with options for designs based on set parameters. The architect will thus have a range of possibilities from which to make informed decisions, hence expanding creativity. It can process huge reams of data and recognize patterns in it to come up with really unique design concepts. AI design tools also happen to be very efficient, processing the data at extreme speeds to create optimized designs with minimal time wasted on manual adjustments..

Another important point is that AI can produce scripts useful in visual programming tools such as Grasshopper and Dynamo. These scripts would complicate responsive designs by automatizing repetitive tasks and allowing the possibility of parametric adjustments in real-time. Such AI-generated scripts can optimize structure components, simulate numerous environmental conditions, and bring together different design parameters seamlessly. This integration could develop the design process as a whole, raising efficiency and creating time for the architect to spend on creative and innovative aspects of projects.

AI Applications in Parametric Design

Generative Design:

This means that AI-driven generative design tools will automatically remodel architectural workflows for the generation and evaluation of several design alternatives against set parameters. Embedded in these solutions are machine learning algorithms that probe for different configurations designed for factors, including structural integrity, cost, and sustainable criteria. Generative design accelerates innovation through design automation and the iteration of solutions. It allows architects to devise new solutions in reality that attain set goals of a project while, at the same time, boosting creativity through the exploration of many unorthodox design possibilities.

Predictive Analytics:

AI supports parametric design wherein predictive analytics are used to draw predictions on outcomes to direct design decisions. In the words of Rubens, from large datasets and live input, AI algorithms could predict the performance of various repository configurations on fine-tuned benchmarks for adductive reasons, hence coupling the energy performance, thermal comfort, and friendly environment aspects. Such a projection will enable architects to take conscious decisions at the pre-design phase of projects, hence reduce risks that may arise and increase the efficiency of the design process. For example, the use of AI to forecast building energy use based on the building’s orientation, material usage, and climatic information hints at passive design strategies and operational performance

Optimization Algorithms:

Optimization with AI-based algorithms is equally pivotal in refining any solution to the design. It does that by the approach of iterative parameter changes to realize optimal results subject to some set constraints. Very often, the algorithms run complex computation to the fullest in a bid to optimize the structural configurations, the designs of facades, and interior layouts to be efficient and effective in the delivery of services. AI-driven optimization ensures enhancement in design quality by balancing ease of decision-making processes among competing objectives such as aesthetics, cost-effectiveness, and sustainability in parametric architecture.

Simulation and Analysis:

AI gives state-of-the-art simulation capabilities, mimicking reality and testing design performance. Architects could simulate the airflow, light, or thermal behavior powered by AI-driven tools in buildings for environmental comfort and operational efficiency. Such simulations would check the design decisions for probable challenges, offer information to iterate for improvements, and ensure that designs meet up to regulatory standards and sustainability goals.

Natural Language Processing (NLP):

Natural Language Processing (NLP) with AI-driven tools to allow for collaboration through communication, meanwhile parametric design will interpret meaning from natural language inputs to automatically derive design solutions. Architects will simply express the design intentions and requirements in plain language, which the AI will understand in terms of the design parameters and depictions. This is a capability that can support both user-oriented design processes, where individual stakeholders are to articulate various ideas, and be in a position to clearly provide feedback. NLP-driven AI tools guide iterative design refinements in which an architect is able to rapidly iterate through all the concepts and meet client expectations and goals for a given project.

Examples of AI-Powered Tools in Architectural Rendering

  1. Midjourney: AI-based, turning text prompts into vivid pictures that help architects quickly prototype and communicate the design of this to clients with ease.
  2. ArchitectGPT: ArchitectGPT is specialized in photograph-to-customizable-architectural-design and has more than 65 design themes and commercial-use licenses, thus empowering architects by versatile rendering capability.
  3. Visoid: Powered by AI and cloud, Visoid allows for high-quality 3D rendering at incredible speeds and simplifies workflows in visualization, making any special hardware a thing of the past.
  4. Sketch2Render: Connecting hand-sketches to realistic 3D models, Sketch2Render makes design processes easy with deep AI capabilities and fast creation of immersive architectural representations.
  5. Genera.so: Genera.so empowers users to generate digital renders from text descriptions, and it’s perfect for interior design and refurbishment works—it provides practical assistance and new ideas.

Also explore on AI Floor Plan Generators: A Comprehensive Review

Utilizing ChatGPT and AI Tools in Visual Programming

AI tools such as ChatGPT can significantly help in architectural design. ChatGPT generates design ideas, proposals for changes, and solves design problems. Moreover, depending on the input data, ChatGPT provides insight and recommendations that turn the design process into an easier and more creative process.

For example, Grasshopper can utilize AI-driven workflows to enable automation and optimization of the design process. In this regard, architects may use AI to automatically compute the building layouts that best fit environmental features such as sunlight and wind. It can also assist in generating complex geometries through the processing of large data sets, applying the parametric rules. By incorporating AI into Grasshopper, designers can automate repetitive tasks, be able to explore more design variations, and reach a larger degree of accuracy.

The integration of AI into visual programming tools confers several advantages: Computational complexities and data analytics are removed through automation, freeing designers to become creative and innovative. It facilitates decision-making by allowing data-driven insight, enhanced for optimization. It facilitates collaboration, as AI produces choices for designs that are easily shared and modified. The integration of AI into visual programming tools, in general, will provide a much more efficient workflow with quality designs and the broadest exploration of architectural possibilities.

Using ChatGPT in Grasshopper for Parametric Design

ChatGPT is a highly advanced OpenAI language model that, when used with Grasshopper, could offer numerous benefits. This would not only be helpful in streamlining workflow but even provide step-by-step support in developing intricate algorithms. Here is what the use of ChatGPT could mean for working with Grasshopper when specifically dealing with scripting and coding.

1. Step-by-Step Guidance

When we combine the capabilities of ChatGPT as a digital assistant, it would give step-by-step directions in setting up different operations in Grasshopper. It can lead beginners through the development of basic components and algorithms, with the ability to request such things as setting up an attractor algorithm. This way, not even starting beginners will miss their way around while learning in Grasshopper.

2. Writing Code for Grasshopper Components

Hence, the most potent application of ChatGPT to date would appear to be scripted Grasshopper components—written either in Python or C#. Users would be able to prompt the AI to write such scripts as a Fractal Tree algorithm or a Differential Growth algorithm. Given detailed instructions, ChatGPT could produce accurate and functional code snippets that users can directly drop into Grasshopper. And all that saves quite a load of time and energy compared to what goes into writing the code from scratch

3. Enhancing Creativity and Problem-Solving

ChatGPT helps in brainstorming solutions to a problem by putting forward creative solutions and various approaches to it. For example, if a user finds a problem while designing, he can communicate with ChatGPT and get many alternatives to solve the problem. It gets all solutions, and thus the horizon of creativity is increased, and handling many problems related to the design process is facilitated.

4. Generating Iterative Growth Algorithms

ChatGPT can create iterative growth algorithms, which are essential in parametric design for generating complex and organic forms. By inputting specific parameters and desired outcomes, users can ask ChatGPT to generate and refine algorithms that simulate natural growth patterns, such as fractal trees, cellular automata, or boid flocking behaviors. These scripts can then be adjusted and tested within Grasshopper to achieve the desired design outcomes.

5. Customizing and Optimizing Code

ChatGPT can help to create parametric design growth algorithms. Such algorithms are crucial to give life to forms that are highly constituted or organic; thus, the importance of parametric design. The input of some parameters, set with desired outcomes, allows the user to ask ChatGPT for the invention of new growth algorithms or to refine those existing ones that exhibit a natural simulation of growth, such as fractal trees, cellular automata, or boid flocking behaviour. Then, these scripts can be adjusted and tested within Grasshopper in order to deliver the design outcome.

After establishment of base code, the user will be able to personalize and maximize the functions, performance, and efficiency of the code. Similarly, checking for bugs within the self-existing scripts or including any other new efficient feature inside the script can be requested. This method can proceed in an iterative manner, and it will be able to refine and further enrich the code so that it completely matches the given project requirements

6. Best Practices for Prompting ChatGPT

Using ChatGPT effectively also includes appropriate prompting. Users are supposed to give clear, detailed, and specific instructions in order to get hard-hitting and useful responses. For example, instead of just asking for a “growth algorithm,” users ought to specify the type of growth they want, associated parameters, and constraints on the inputs. Such clear specifications greatly help ChatGPT generate relevant and precise code snippets.

Integrating ChatGPT within Grasshopper can certainly take the overall efficiency, creativity, and capability of a designer or an architect to higher levels. Step-by-step guidance for complex script generation and providing innovative solutions is another powerful tool for professionals in the field of parametric design. Artificial intelligence technology and integration with Grasshopper design tools will definitely open new possibilities for creative design processes.

Iconic parametric architecture projects utilizing AI and Visual programming

Beijing National Stadium (Bird’s Nest), Beijing, China

Parametric Architecture

The use of AI-driven parametric tools was wide-ranging during the design and construction phases of the Bird’s Nest stadium. Such tools enabled architects to iterate over and over again in order to achieve an immaculate lattice structure that would be as beautiful as it is strong. They used visual programming like Grasshopper to simulate various design iterations in order to work out a form that balanced the desired level of visual complexity against engineering feasibility. This way, not only was the iconic look of the stadium enriched, but also clearer workflow in construction was granted due to the availability of detailed digital models for fabrication and assembly. The parametric design of the stadium empowered architects to work out unique geometries that, without the help of computers, would be too difficult to achieve. That is what brought about the possibility of design flexibility in creating a visually outstanding landmark that has been inspiring architects and engineers around the world to this very day.

Heydar Aliyev Center, Baku, Azerbaijan:

AI and visual programming were at the heart of bringing the sweeping, fluid forms of the Heydar Aliyev Center into life. In that respect, Zaha Hadid Architects could not have taken their conceptual designs and turned them into buildable structure constructions without using parametric modeling tools. Digital simulation of building curves and complicated surfaces by architects allowed them to work out constructive methodologies for working out optimal material usage so that such ambitious forms of architecture could be built.

The benefit to aesthetics was huge, as the required continuous and seamless surfaces that would define the interior of the building became achievable due to AI tools. Parametric design, on the functional level, has redesigned the primary aim of daylight optimization and spatial flows in general to boost user experience and operational efficiency within a building. Therefore, with such AI-driven design processes integrated, not only did the opportunities to expand ways of architectural expression increase, but it also set new standards for sustainability and user-centered design in contemporary architecture.

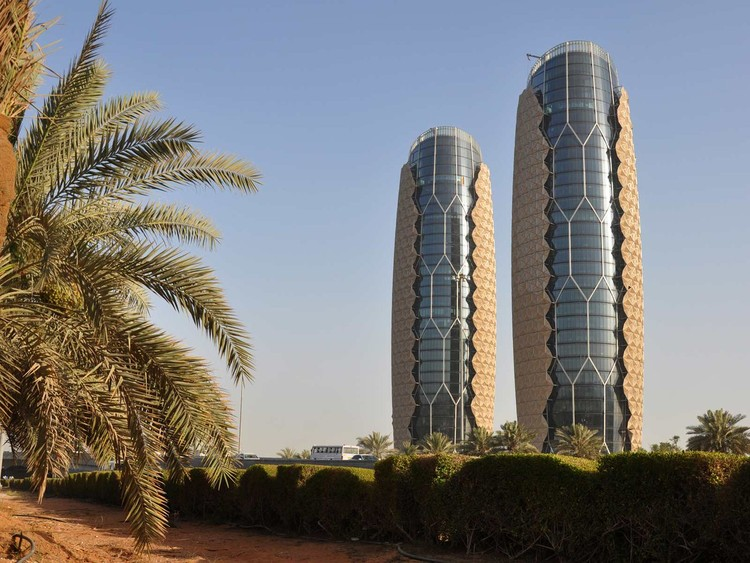

Al Bahar Towers, Abu Dhabi, UAE:

Artificial Intelligence -driven parametric design has been an integral part of developing the Al Bahar Towers’ responsive facades system. The passive dynamic shading system, a contemporary take on the traditional Islamic-grade architecture, reacts to the sun exposure during the day by moving to optimize daylighting, energy, and indoor comfort. The architectural office made use of advanced visual programming tools to simulate performance under several environmental conditions in guaranteeing the expected targets in terms of sustainability performance.

Aesthetic in effect, the appearance of the tower continually changes, dynamically relates to environmental factors, and changes over time in an external environment. In terms of functionality, AI-driven parametric design provided increased occupant comfort by minimizing solar heat gain and glare, which reduces the energy consumed by cooling and lighting. In practice, these changed the building’s exterior into a dynamic visual landmark. It also established the practical application of AI in achieving sustainable architecture.

Also explore on Generative and Algorithmic design in Architecture

Top Architect Firms in Parametric Architecture

Zaha Hadid Architects

Innovating the parametric design, Zaha Hadid Architects have conceded more from the potentials of AI along with visual programming to foster fluid and organic forms. A key example is the Heydar Aliyev Center in Baku, which is an example of the use of computational tools to achieve seamlessness in its design, thereby achieving organic shapes that relate form to functionality. AI has been key to the optimization of complex geometry and the structural performance of the design, thus setting new benchmarks in innovation.

Herzog & de Meuron:

Herzog & de Meuron are a leading proponent in the use of parametric design to investigate geometric complexities in order to get optimized performances structurally. A good example is the Bird’s Nest stadium in Beijing, which used AI and visual programming in the design of very complex lattice structures. The project has not only defined the tactful iconic facade of the stadium but has also proven the ability to merge computational tools with architectural expression to achieve visual impact and structural integrity

Foster + Partners

Foster + Partners combines AI with visual programming to further the cause of sustainability and innovation in architecture. Projects like the Bloomberg Headquarters in London is one of the best example for the application of parametric modeling to practically guarantee efficient performance in the environment. AI tools allow the testing of complex conditions and analysis of results to drive critical design decisions about natural light, airflow, and energy use. Such integration improves aesthetic values while optimizing the operational efficiency related to their buildings

UNStudio

Design flexibility and responsiveness characterize projects created by the UNStudio architects, using computer-generated design patterns. For example, the Mercedes-Benz Museum in Stuttgart demonstrates the competence of the firm to use computational designing whilst informing the user needs and environmental settings. The use of a parametric approach allowed UNStudio architects to introduce dynamics for spaces where utility overruled architectural expression, therefore leading to a better experience from innovative solutions at the design level.

BIG – Bjarke Ingels Group

BIG uses the principles of parametric design and AI tools in the development of sustainable architectural solutions. Their work on the Amager Bakke Waste-to-Energy Plant in Copenhagen is a case in point of how computational design brings together functional and aesthetic requirements in a unified approach. By following AI-driven procedures for the optimization of building forms concerning issues of energy and environmental performance, BIG doesn’t fail to demonstrate its commitment to innovative, contextually responsive architecture.

Benefits of AI and Visual Programming in Parametric Architecture

Flexibility and Adaptability in Design: Using AI and visual programming, architects can engage with complicated geometries and fluid adaptive designs able to respond to the diversity of project requirements and environmental conditions.

Computational Design for Structural and Material Efficiency Optimization: : Computational tools can be involved in the optimization of a building with respect to its structural integrity and usage of materials. Such AI algorithms in the simulation and analysis of the structure under loads will permit the designing of lightweight constructions without loss of the general strength and durability of the structure.

Improved Environmental and Sustainable Performance: Artificial intelligence-driven parametric architecture further allows for the easy incorporation of sustainable design principles. Visual programming tools can offer simulation and optimization for environmental factors such as daylight, natural ventilation, and energy use. It would then not be hard to have energy-efficient buildings that are environmentally friendly and contribute positively to their surroundings.

Learn more about Augmented Reality in Real Estate and AEC industry

Challenges and Considerations in integrating AI in Parametric Architecture

Difficulty and Steep Learning Curve:: AI and visual programming tools are more and more applied in parametric architecture. For such a circumstance, architects should be able to obtain new abilities and knowledge. This is usually due to the nature of these tools being complex in nature, with steep learning curves; training and adjustment are needed if architects want to apply them well in design processes.

Computational and Resource Demands: AI-driven parametric design means huge computational power and resource demands. Architects need robust hardware and software infrastructures in order to run such complex algorithms and simulations. In this regard, proper resource management is very essential to maintain the efficiency of workflow and project timeline.

Integration with Traditional Architectural Practices: AI and visual programming are not very easy to integrate into traditional architectural practices. While these technologies provide new, exciting capabilities, the compatibility of those workflows or methodologies for design may not always be apparent. Designers should balance the benefits given by automation and optimization against the need to protect design intent and client requirements

The future of parametric architecture is bright and transformative. AI and visual programming will stand at the core in the shaping of architectural landscapes, opening new dimensions of creativity, efficiency, and sustainability. This will help architects and designers embracing these technologies to define new aesthetics in architecture and set a built environment that is more responsive, efficient, and harmonic with its surroundings.

Whereas visual programming and AI could simply become the very tools that architectural design would desperately need, they actually act more as catalysts for new imaginations of how we might rethink the conceptualization, construction, and inhabitation of spaces around us. Such embracing innovations will no doubt show a way into the future where architecture combines artistry with technological skill to enhance lives and inspire generations to come.
